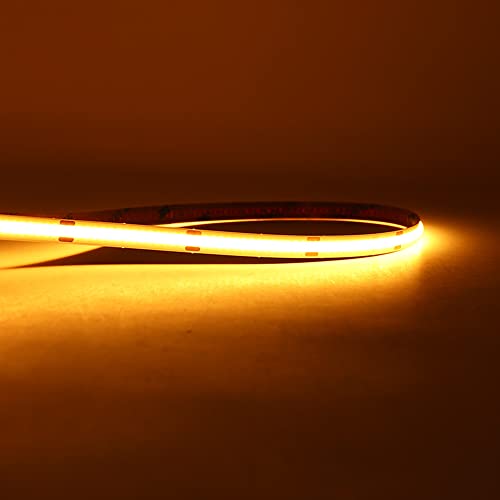

COB LED STRIP LIGHT PARAMETERS Product name: MALIIGAZA COB LED STRIPInput Voltage: DC12V or DC24VLED chip quantity : 480LEDs/mWattage: 11W/mLED strip length: 16.4ft (5 meter)LED strip width: 8mm (0.31 inch)LED strip thickness: 2.2mmCuttable: each 1.96IN (50mm) per cutView angle: 180°Color Rendering Index (RA): 90+Waterproof level: IP20 Non-waterproofColor temperature: Warm white(3000±100K); Natural white (4000K±100K); Cold white(6000K±200K), Warm yellow(2700K±100K)Operation temperature: -20℃-+45℃Storage temperature: -20℃-+60℃ COB Strip Features Dotless Lighting Balance & soft lightingNo light spots Cuttable The COB strip is cuttableWith strong adhesive tape, easy installation Bendable Can be bent to any shapeLow voltage, safe to use High CRI CRI>90No flicker Color & Lighting Show How to choose right power supply? 1. The COB strip is around 10W/m, so for 5m (16.4FT) LED strip, it needs a 50W power supply. The power supply can be bigger (60W, 100W, 200W are all ok), but can't be smaller, if the power supp is too small, the led strip will flash during working. 2. Since there's voltage drop of the led strip, the real working power is much less than theoretical value. So it's ok that the power supply is a little smaller than the counted value. 3. Recommended power supply: 12V 16.4FT => 12V 5A adapter (or 12V 60W transformer) 24V 16.4FT => 24V 3A adapter (or 24V 60W transformer) Package Included 1x 16.4FT COB LED strip (power supply is NOT included)1x DC connector (for connecting plug power supply) Installation Diagram Important Tips The COB LED strip CAN NOT be connected to AC110V directly, must add a DC 12V/24V power supply.The AC/DC transformer (power supply) is NOT included.The COB strip is dimmable, but need to add a suitable dimmer. Dimmer is NOT included.The actual power of the COB strip will be affected by the voltage drop. For example, the real using power of 16FT 480LEDs /m is 40W, not 11W/mx5m= 55W (theoretical value). The calculation method of 55W is wrong, and the voltage drop should be actually considered.Please make sure the installing surface is clean + dry + smooth, or the COB strip cannot be pasted stably.There will be Voltage Drop (the head of the led strip is brighter than the end) if the COB strip is too long. If you want to extend the COB strip to longer length (like 32.8FT or more), need to supply power to both of the head and end of led strip independently. COB Strip Connector Tuya Wifi Controller IP68 COB Strip COB Strip Blueooth Kit 12V 6A POWER SUPPLY LED Transformer Buying Options Add to Cart Buying Options Add to Cart Buying Options Add to Cart Customer Reviews — 4.8 out of 5 stars 7 — 3.5 out of 5 stars 8 3.5 out of 5 stars 2 5.0 out of 5 stars 4 Price — no data $26.99$26.99 — no data $20.99$20.99 — no data $12.99$12.99 Length 16.4ft/5m no data 16.4ft/5m 32.8ft/10m \ no data PCB Width 5/8/10mm no data 8mm(total width 10mm) 8mm \ no data LEDs quantity no data no data 480 LEDs/m 384 LEDs/m \ no data Voltage no data no data 12V/ 24V 24V 12V 12V CRI no data no data >90 >90 \ >90 Watt no data 360W 11W/m 10W/m 72W 100W Brightness no data no data 1100LM/m 1000LM/m \ no data Waterproof grade no data IP20 IP68 IP20 \ IP20 Features Fast connector for LED strip Smart wifi controller, work with Alexa and Goolge Assistant IP68 Waterproof APP + Remote control, 32.8ft without voltage drop LED Power Supply High quality LED power supply
